ACE AF1 POLISHED SKATEBOARD TRUCKS
ACE AF1 POLISHED SKATEBOARD TRUCKS
Skate Setup Size Chart
Use this chart to match decks, trucks, and wheels. Preferences vary by style (street, park, transition). Beginners: wheels about 52–55 mm, duro around 101A.
Deck width
| Deck width | Height | Age | Shoe size |
|---|---|---|---|
| 7.0" & under | 4'4" or smaller | 8 yrs or younger | Kids 5 or smaller |
| 7.1"–7.45" | 4'5"–5'2" | 9–12 yrs | Mens 6–8 |
| 7.5" & up | 5'3" or taller | 13 yrs or older | Mens 9 or larger |
Deck width and riding style
| Deck width | Recommended riding style |
|---|---|
| 7.45" or less | All around riding for kids 14 yrs & under |
| 7.5"–8.0" | Street, technical tricks |
| 8.0"–8.25" | Pools, ramps, parks, & all-around |
| 8.25"+ | Vert, pools, cruising |
Wheel diameter
| Wheel diameter | Use |
|---|---|
| 49–52 mm | Technical street |
| 52–55 mm | All around, geared more toward street |
| 55–60 mm | All around, geared more toward transition |
| 60–65 mm | Transition |
| 65–70 mm | Some transition; many cruiser & longboard |
| 70 mm+ | Downhill longboard |
Trucks and deck (common brands)
| Brand | Truck size | Deck sizes |
|---|---|---|
| Independent | 129 | 7.4"–7.8" |
| Independent | 139 | 7.8"–8.2" |
| Independent | 149 | 8.375"–8.6" |
| Independent | 159 | 8.6"–9.0" |
| Thunder | 147 | 7.9"–8.2" |
| Thunder | 149 | 8.2"–8.4" |
| Thunder | 151 | 8.4"+ |
| Venture | 5.2 / 5.25 | 7.75"–8.25" |
| Venture | 5.8 | 8.25"–8.75" |
| Ace | 22 | 7.0"–7.75" |
| Ace | 33 | 7.75"–8.25" |
| Ace | 44 | 8.25"–8.75" |
| Krux | 8.0 | 7.75"–8.38" |
| Krux | 8.25 | 8.0"–8.5" |
| Tensor | 5.25 | 7.875"–8.175" |
| Tensor | 5.5 | 8.125"–8.375" |
Couldn't load pickup availability
Bow Shock Marketplace · since 2024
Sold by The Dark Slide on Bow Shock Marketplace —partner skate shops, one checkout. Product details come from the selling shop; checkout is on Bow Shock.
- Packages may ship separately from each shop
- Free US shipping on orders $150+

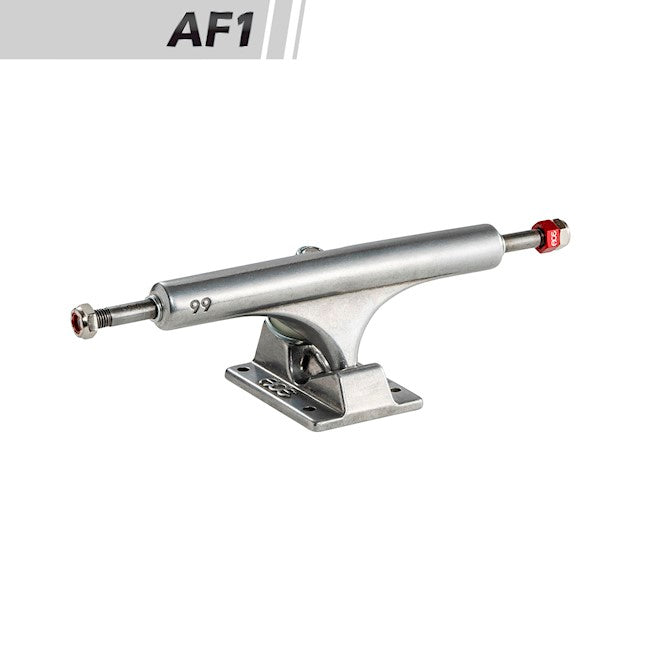

ACE AF1 POLISHED SKATEBOARD TRUCKS
Price is for set of trucks (2 trucks)
The Ace AF1 is the strongest and longest lasting cast truck available. These trucks are manufactured using our proprietary casting process, which produces a stronger and tighter grain structure within the aluminum. AF1 come equipped with high quality suspension including hand-poured pivot cups and break in bushings, making these trucks ready to rip in no time at all. Each truck comes standard with re-threading axle nuts ensuring your axle never strips. As a bonus, an additional red re-threader die is included, keep it on your key chain and you’ll be a hero to a friend in need. Tested and approved by our team of Ace Pilots, AF1 is the gold-standard in cast truck technology, griding through burly ledges and pool coping has never felt so good!
• Hanger width: 5.6” (143mm)
• Truck height: 2.1” (53mm)
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.
